Hydrocyclone Sand Water Separator Wastewater Treatment
Description

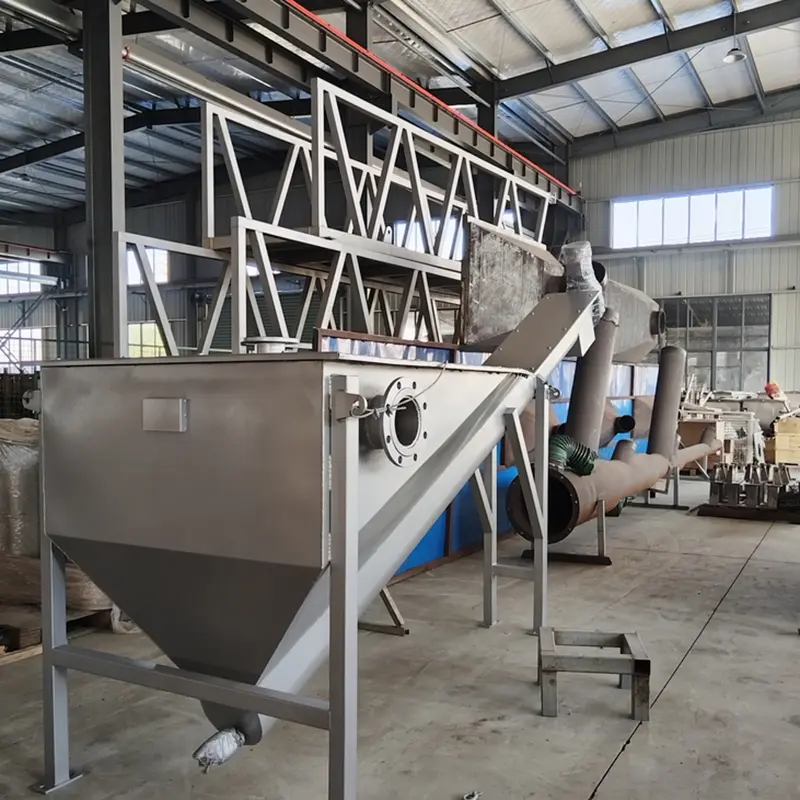

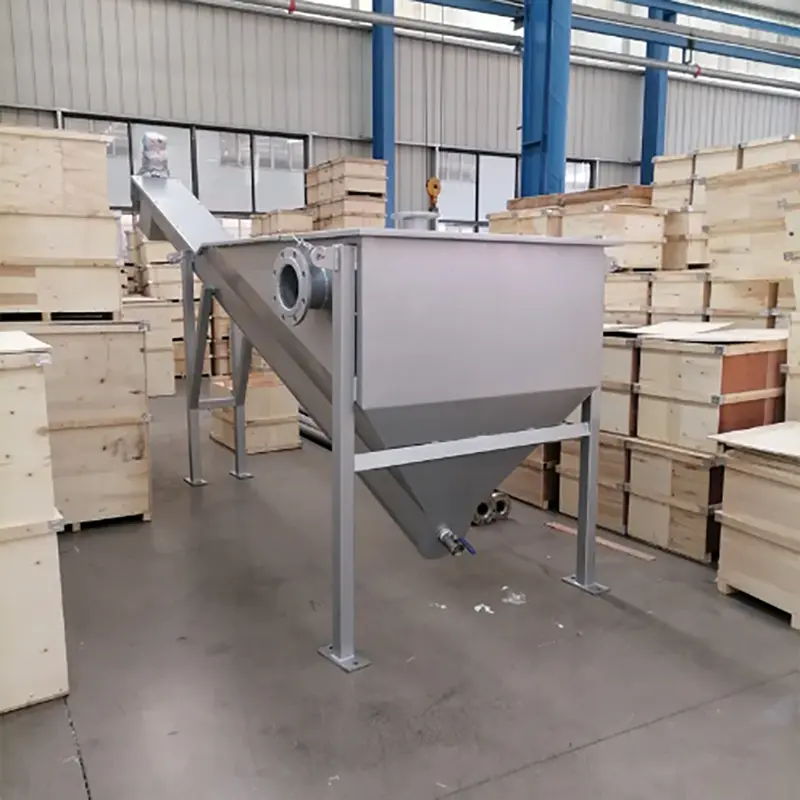

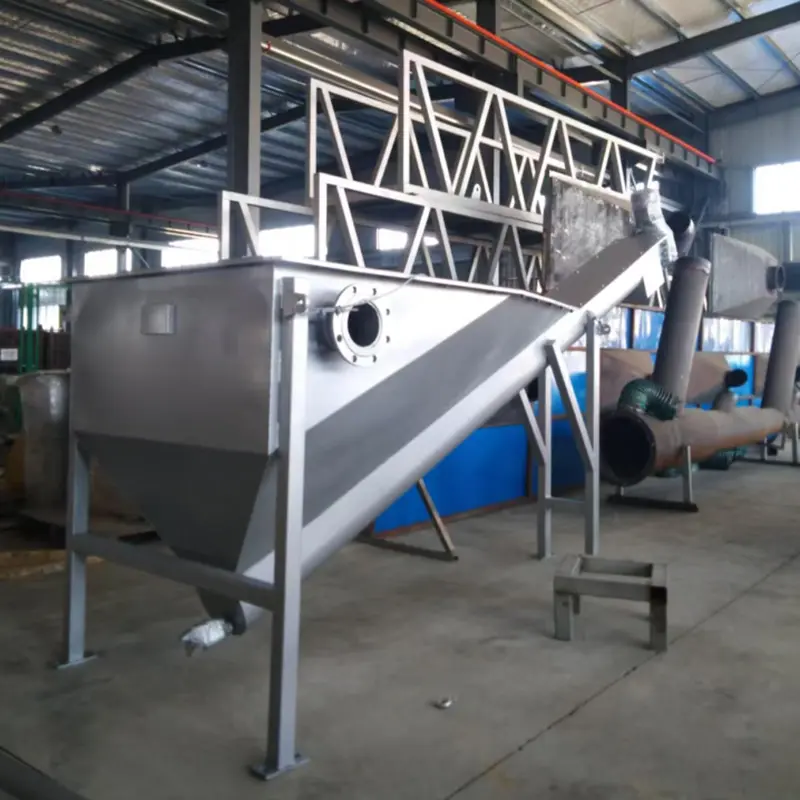

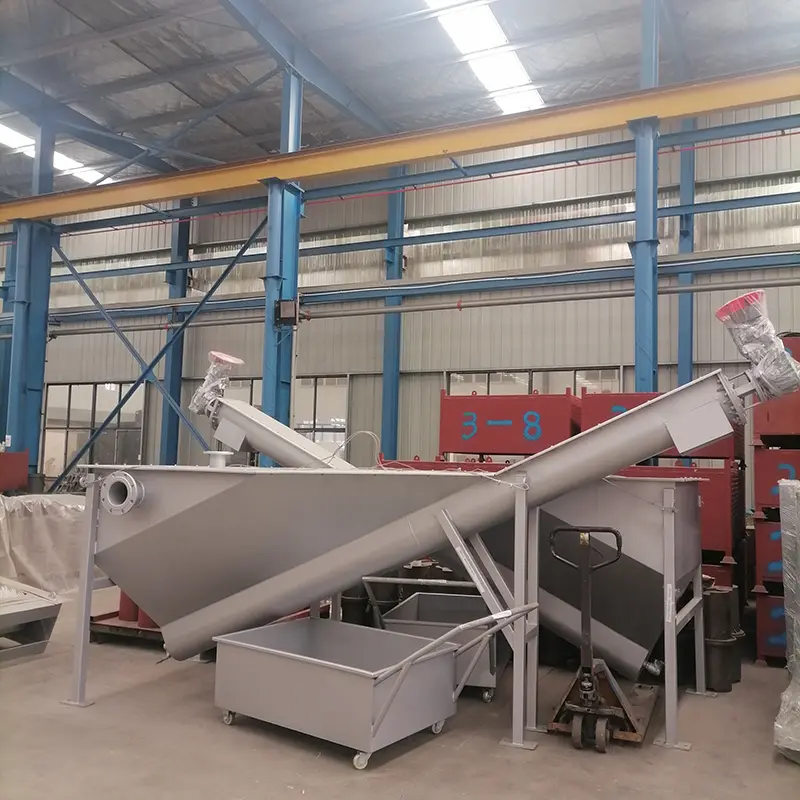

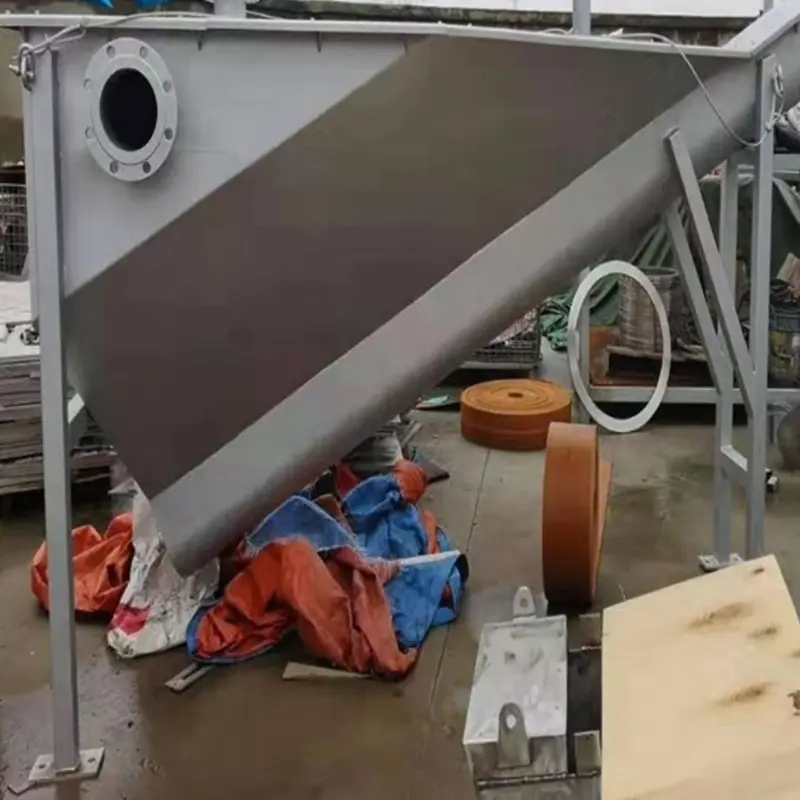

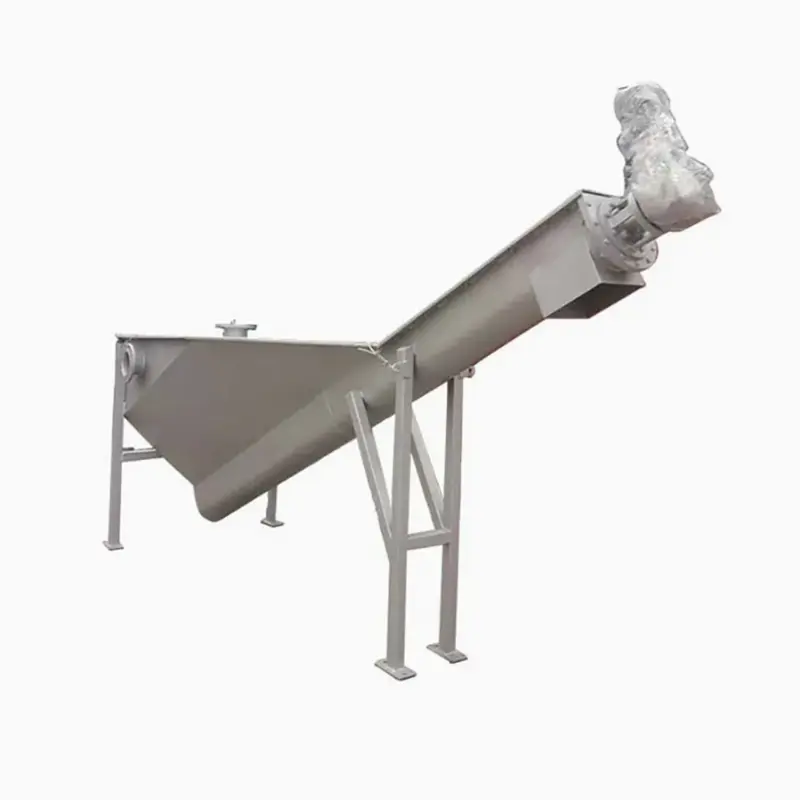

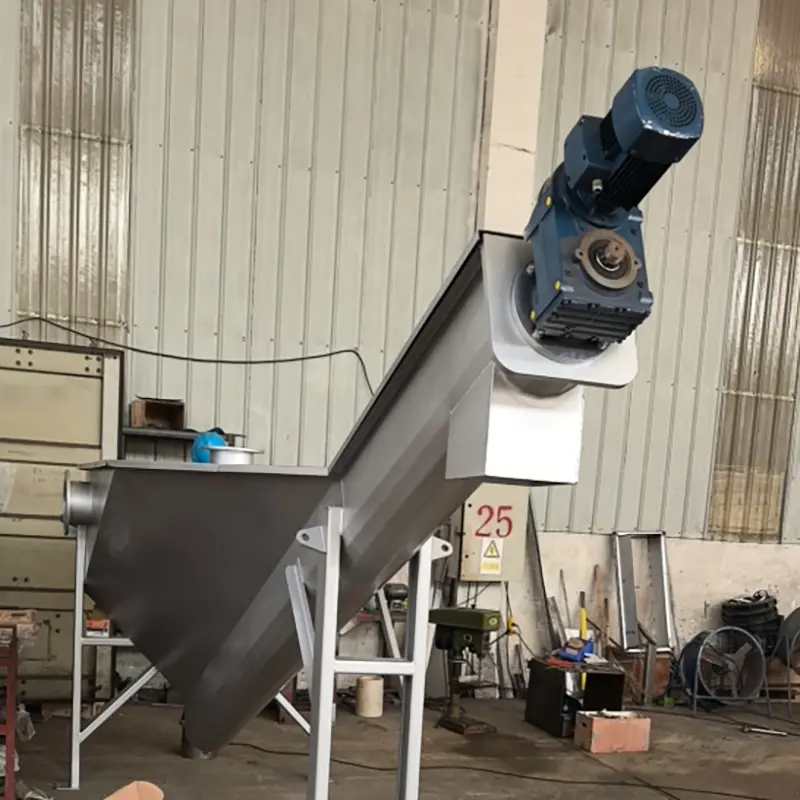

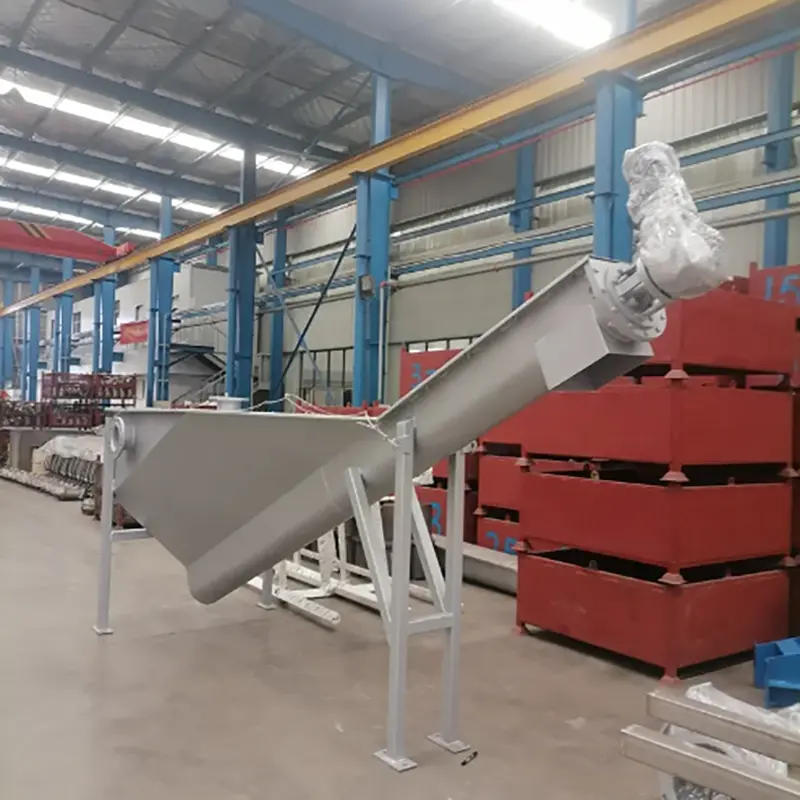

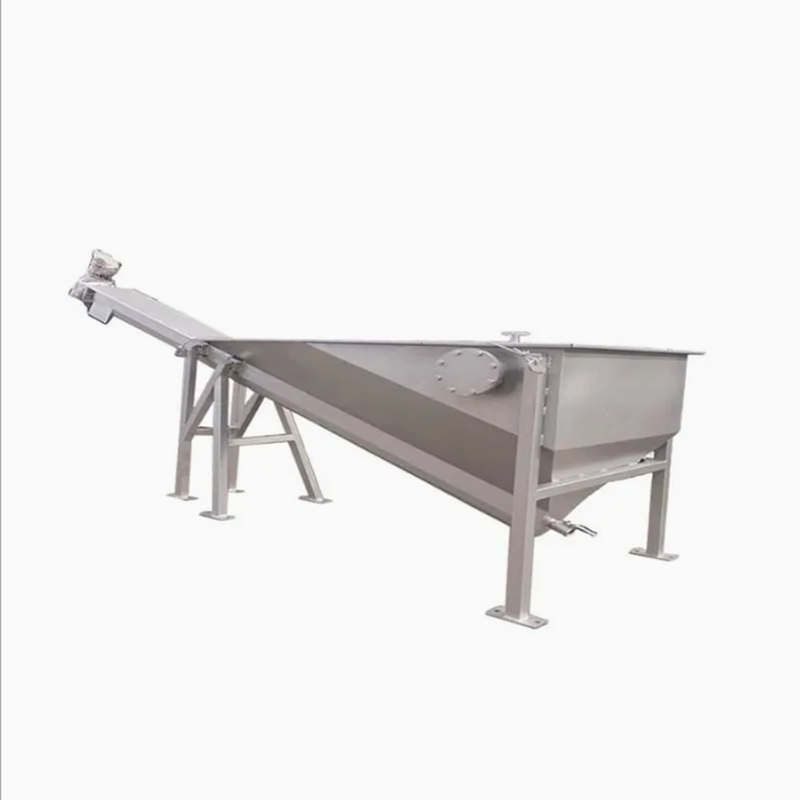

Spiral sand-water separator consists of shaftless screw, lining strip, U-shaped groove,water tank, deflector, outlet weir and driving device The sand-water mixture is fed into the water tank from the top of one end of the separator. The heavy weight of the mixed liquid, such as sand particles, will be deposited on the bottom of the groove. Under the push of the screw, the sand particles will be lifted up along the inclined groove bottom, and will continue after leaving the liquid surface.
Parameters
argument |
LSSF-260 |
LSSF-320 |
LSSF-355 |
LSSF-420 |
Processing capacity L/S |
5-12 |
12-20 |
20-27 |
27-35 |
Power kW |
0.37 |
0.37 |
0.75 |
0.75 |
Features
1.The separation efficiency can reach 96%~98%, and the particles with particle size ≥0.2mm can be separated;
2.Adopt shaftless spiral waterless bearing, which is easy to maintain;
3.Compact structure and light weight;
4.The new transmission device, its key product - the reducer is an advanced shaft-mounted type without coupling, which is convenient for installation and alignment;
5.The lining strips are quick-installed, easy to replace;
6.The axial position of the screw can be adjusted, which is convenient to adjust the safety clearance between the tail and the box wall
